| Model: | SEC15000 |
|---|---|
| Min. Order: | 100 Piece/Pieces |
| Payment Terms: | Paypal, T/T, WU |
| Place of Origin: | Zhejiang, China (Mainland) |
| Means of Transport: | Ocean, Air, Land |
| Production Capacity: | Annual output20000PCs |
| Packing: | carton |
| Delivery Date: | about 25 days | capacity: | 15000lbs |
|---|---|---|---|
| Function: | vehicle recovery | Certificate: | CE,FCC,ISO9001:2008 |
| Export Area: | Europe,US,Australia,etc | solenoid: | waterproof |
| winch body: | sealed | gears: | cold extrusion |

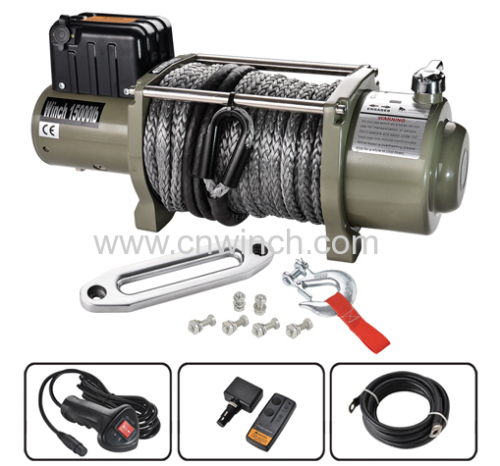

15000LB FEATURES AND SPECIFICATIONS | |
Rated line pull | 15000LB (6804 KG) single line |
Motor | 5.6hp/4.2kw (12V);6.17hp/4.6kw(24V) |
Control | Remote switch,12ft(3.7m)lead |
Gear train | 3 Stage Planetary |
Gear reduction ratio | 312.4:1 |
Clutch | Flexible operation,water-resistent |
Braking Action | Automatic In-The-Drum |
Drum Size | Φ85x221.5mm(3.35"x8.72") |
Cable | Φ11.0mmx28m(0.433"x91.86") |
Fairlead | 4-Way Roller Fairlead |
Wireless Remote Control | included |
Battery | Recommended:650CCA minimum for winching |
Battery Leads | 2 gauge,72"(183mm) |
Finish | Dark gray powder coat |
Overall Dimensions | 21.5"x7.09"x9.73"(547mmx180mmx247mm) |
Mounting Bolt Pattern | 254mmx114.3mm(10"x45") |
Weight | N.W. 53kg G.W.55kg |
Packing size | 60x23x38.5cm 1PC/CTN |
15000LB LINE PULL AND CABLE CAPACITY | |||||
Layers of cable | 1 | 2 | 3 | 4 | |
Rated Line Pull Per Layer | lb | 15000 | 13779 | 11202 | 9358 |
kg | 6804 | 6250 | 5081 | 4245 | |
Cumulative cable capacity | ft | 19.75 | 41.79 | 66.09 | 91.86 |
m | 6.02 | 12.74 | 20.15 | 28 | |
15000LB LINE SPEED AND AMP DRAW (FIRST LAYER) 12V | |||||||||
Line Pull | lb | 0 | 2000 | 4000 | 6000 | 8000 | 10000 | 12000 | 15000 |
kg | 0 | 907 | 1814 | 2721 | 3628 | 4536 | 5443 | 6804 | |
Line Speed | ft/min | 23.94 | 12.27 | 9.38 | 7.41 | 6.16 | 5.18 | 4.46 | 3.31 |
m/min | 7.30 | 3.74 | 2.86 | 2.26 | 1.91 | 1.58 | 1.36 | 1.01 | |
Motor | Amps | 75 | 106 | 167 | 195 | 246 | 283 | 340 | 433 |
15000LB LINE SPEED AND AMP DRAW (FIRST LAYER) 24V | |||||||||
Line Pull | lb | 0 | 2000 | 4000 | 6000 | 8000 | 10000 | 12000 | 15000 |
kg | 0 | 907 | 1814 | 2721 | 3628 | 4536 | 5443 | 6804 | |
Line Speed | ft/min | 25.6 | 12.7 | 9.7 | 7.79 | 6.4 | 5.4 | 4.6 | 3.44 |
m/min | 7.80 | 3.88 | 2.90 | 2.37 | 1.95 | 1.65 | 1.41 | 1.05 | |
Motor | Amps | 60 | 97 | 138 | 162 | 193 | 228 | 256 | 332 |
