Car Winch 9500lbs with wired control manufacturers and suppliers in China

Car Winch 9500lbs with wired control Admin Edit

Model:	S9500(12/24V)
Min. Order:	20 Piece/Pieces
Payment Terms:	Paypal, L/C, T/T, WU
Place of Origin:	Zhejiang, China (Mainland)
Means of Transport:	Ocean, Air, Land
Production Capacity:	Annual output20000PCs
Packing:	carton

Delivery Date:	about 25 days	Brand Name:	P5000
Specification:	Electric, diverse models	Function:	car self-recovery
Certificate:	CE, FCC, ISO9001:2008	Export Area:	Europe,US,Australia
Capacity:	9500lbs 4.3ton	Voltage:	DC12V/ DC24V
SOLENOID:	500A WATERPROOF

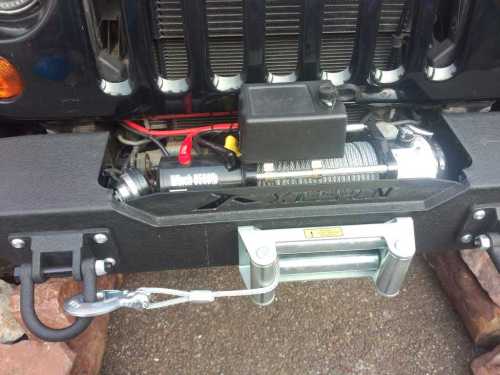

Car Winch 9500lbs with wired control

-CE CERTIFIED;

-PLI COVERED WORLDWIDE;

Rated Line Pull : 9500LBS (4300kgs) single line
Motor: 5.5hp/4.0kw Series Wound
Control : Remote switch, 12ft(3.7m)lead
Gear train : 3 Stage Planetary
Gear train ratio : 265:1
Clutch : Sliding Ring Gear
Braking Action : Automatic In-The-Drum
Drum Size : Diameter2.5"(63.5mm) Length8.8"(224mm)
Cable : 94ft of 5/16"diameter(28m of 8.3mm diameter)
Fairlead Fairlead : 4-Way Roller Fairlead
Remote Control : Included
Battery: Recommended:650CCA minimum for winching
Battery Leads : 2 gauge,72"(183mm)
Finish : Black powder coat
Overall Dimensions : 21.1"×6.3"×8.6"(537mm×160mm×218mm)
Mounting Bolt Pattern : 254mm×114.3mm
Weight : N.W.37kg G.W.39kg
Packing Size : 57×19×34.5cm 1PC/CTN
