| Model: | SQ10000 |
|---|---|
| Min. Order: | 20 Piece/Pieces |
| Payment Terms: | Paypal, L/C, T/T, WU |
| Place of Origin: | Zhejiang, China (Mainland) |
| Means of Transport: | Ocean, Air, Land |
| Production Capacity: | Annual output 20000PCS |
| Packing: | carton |
| Delivery Date: | about 25 days | Specification: | Electric, diverse models |
|---|---|---|---|
| Function: | Automobile self-recovery | Certificate: | CE,FCC,ISO9001 |
| Export Area: | Europe,US,Australia | APPROVAL: | CE |
| INSURANCE: | PLI WORLDWIDE |

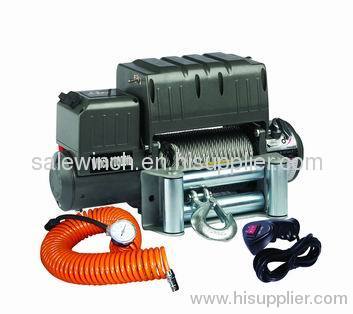

Recovery Winch with air compressor 10000lbs
CE APPROVDE
PRODUCT LIABILITY INSURANCE COVERED WORLDWIDE
10000LB FEATURES AND SPECIFICATIONS | |
Rated line pull | 10000LB (4536 KG) single line |
Motor | 5.5hp/4.0kw (12V);3.6hp/2.68kw(24V) |
Control | Remote switch,12ft(3.7m)lead |
Gear train | 3 Stage Planetary |
Gear reduction ratio | 148.2:1 |
Clutch | Sliding Ring Gear |
Braking Action | Automatic In-The-Drum |
Drum Size | Φ64x223.5mm |
Cable | 5/16" of 94ft diameter(Φ8.3mmx28m) |
Fairlead | 4-Way Roller Fairlead |
Wireless Remote Control | Optional |
Battery | Recommended:650CCA minimum for winching |
Battery Leads | 2 gauge,72"(183mm) |
Finish | Dark gray powder coat |
Overall Dimensions | 21.1"x6.3"x8.6"(537mmx160mmx218mm) |
Mounting Bolt Pattern | 254mmx114.3mm |
Weight | N.W. 44kg G.W.45kg |
Packing size | 57x19x34.5cm 1PC/CTN |
AIR COMPRESSOR SPECS | |
Maximum CFM Output | 2.55CFM(72LPM) |
Air filter | yes |
Noise | 70db |
auto pressure cut off switch | yes |
Airflow | 72LPM |
Max. voltage | 12V |
Max. Amperage draw | 26A |
Max. Operating temperature | -40C~+60C |
Max. Continuous cycle | -20% |
Max. Pressure | 150 PSI |
Category: Winch with air compressors
Related Category: ATV winches Truck winches hand winch 4X4 winches Boat winches
